Description

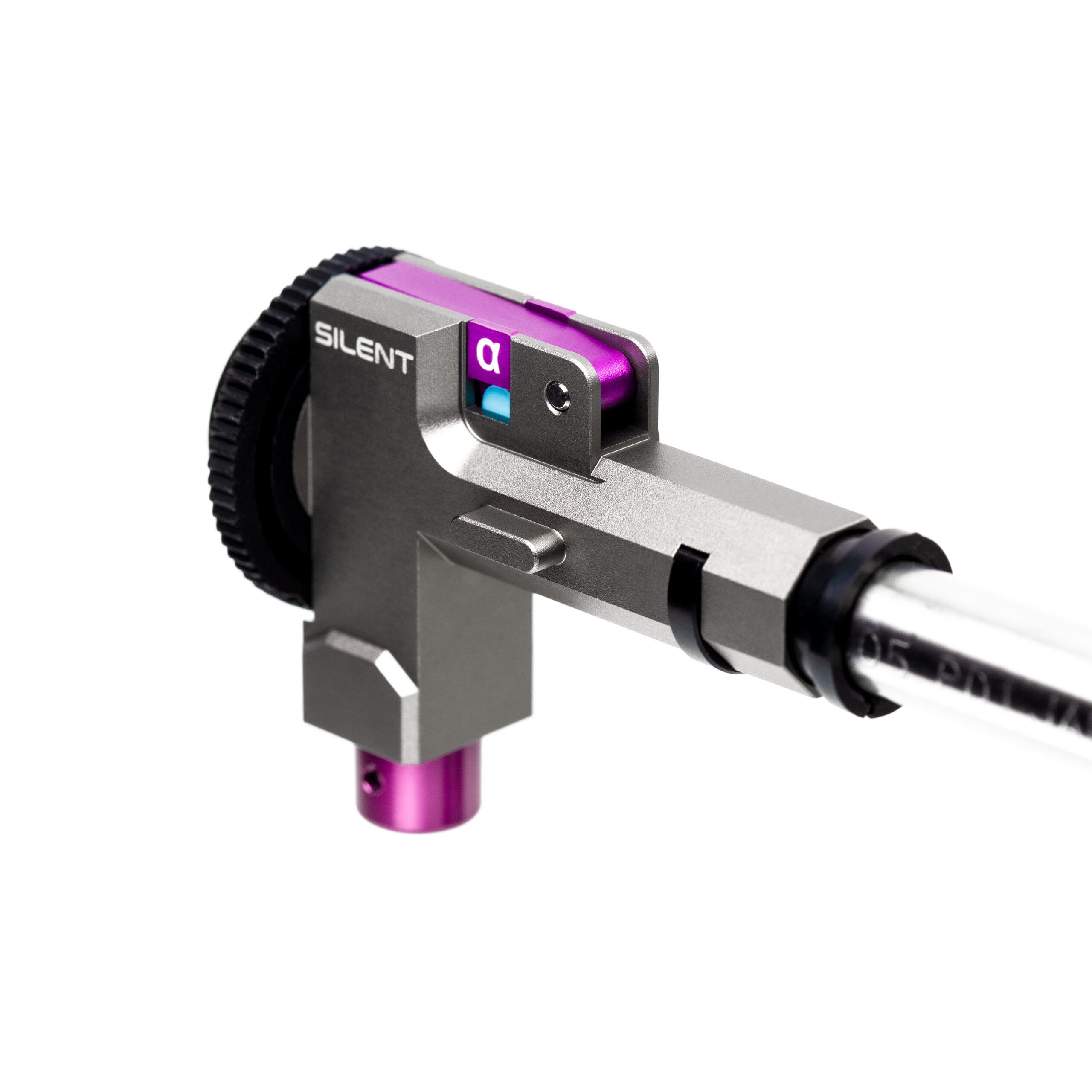

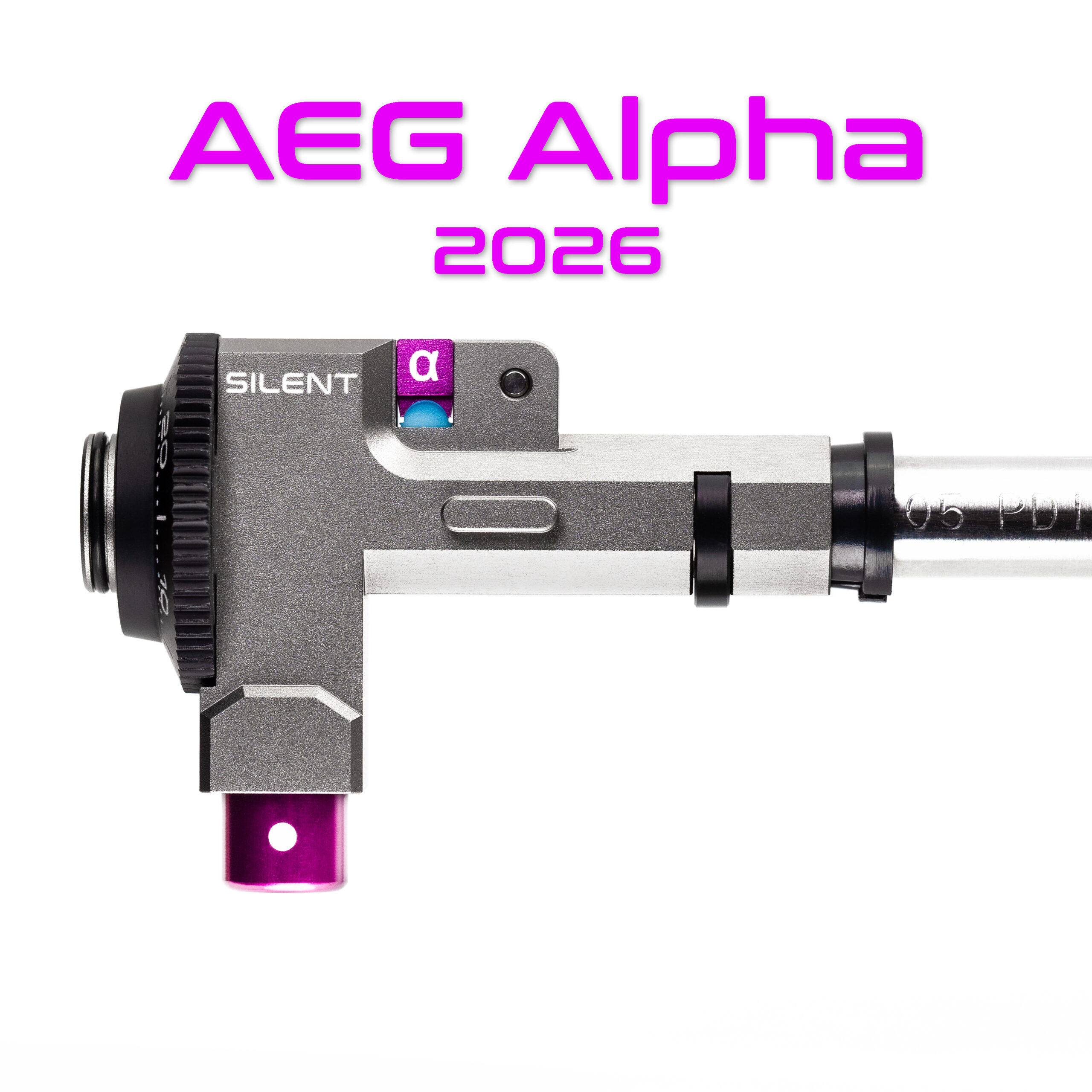

LET US SHOW YOU THE MOST FEATURE PACKED AEG HOP-UP EVER MADE!

TRUE-TDC

To get the most consistent pressure on the bucking through the hop-up settings, we had to include TDC. This means the nub can only move in up & down motion.

The TDC trolley we include is made for nubs, so you can use your desired nub.

We recommend using our Black Nubs, Blue Nubs, ML Omega or similar height nubs, because our system was optimised for it.

Our TDC system provides the most travel distance, meaning it can lift heavy BBs easily!

TENSIONER RING SYSTEM

Our Revolutionary tensioner system is very easy to assemble, it utilises Tensioner rings!

In the package you get two rings, black & white (extra rings can be bought for tighter settings)

We recommend trying ML SuperMacaron with White Ring!

Black is for tighter lip tension

White is looser lip tension

This is the only Hop-Up chamber on the market that fully supports the bucking lips!

Adjustable Feed Tube

The Adjustable Feed Tube enables you to set length of if it, meaning you can fine tune it for your magazines!

This can improve the feeding  and reduce the up/down play of the magazine in the magwell.

(If you have different branded magazines, try them all before use to make an universal adjustment)

BARREL ALIGNMENT GROOVE

The Alpha features a groove that can help you with barrel alignment, we recommend using this as a reference point as some less quality barrels can have misaligned hop-up window!

We recommend Sniper Upgrades, PDI, Lambda, ZCI stainless steel barrels! They are tried and tested by us!

www.sniperupgrades.com

GAME CHANGER FOR HPA BUILDS

HPA engines in general have much stronger BB loading force compared to AEGs, this sometimes can lead to issues such as double feeding, mid-cap syndrome or BB placement.

Our Alpha chamber with it’s innovative bucking lip tensioner system can help with these issues as you can fine tune the loading resistance!

It is a highly recommended chamber for Wolverine, PolarStar, Gate Pulsar engine builds!

WHAT’S INCLUDED?

• Hop-up chamber base
• Adjustment Wheel
• Feed Tube
• Hop-up arm
• TDC nub carriage
• Blue Nub (Extended)
• Stainless Steel pin for the hop-up arm
• O-rings for the Hop-Up body (2 pcs)
• O-rings for the barrel (8 pcs)
• C-clip
• Barrel Stabilizer
• 3x Shims for Nozzle Lenght Adjustment
• 2x Bucking Lip tensioners (Black & White)

WHAT DO YOU NEED?

• Hop-up bucking (G&G Green, Madbull Blue/Red, Maple Leaf Super Macaron, Prometheus Purple, Begadi buckings)
• R-hop (Optional!)
• Tight and Very Tight tensioner rings (optional)
• Recommended nozzle length is standard 21.2mm (can be adjusted with the included shims!)

BRAND COMPATIBILTY

Fits:

• Krytac
• VFC (MCX too with minor mod)
• G&G
• G&P
• Cyma
• Specna Arms
• Novritsch SSR4
• Lancer Tactical
• Double Eagle

Does NOT fit:

• ICS
• Novritsch SSR9 (might fit with some mods)

FOR BEST PERFORMANCE USE HEAVIER THAN 0.28 BBS!

TL;DR

• Use Your favourite bucking and one of our Nubs for the Alpha!
• Try both Tensioner Rings!
• Shoot some heavy BBs! 0.28+ really recommended
• Carefully assemble it and double check everything!

ASSEMBLY

Disclaimer: All aftermarket upgrade parts require necessary skill or modification to install and assemble, please consult with your airsoft technician if needed. This part is only for toys.
